<span>Coolant Pumps (SCP <small>Series</small>)</span>

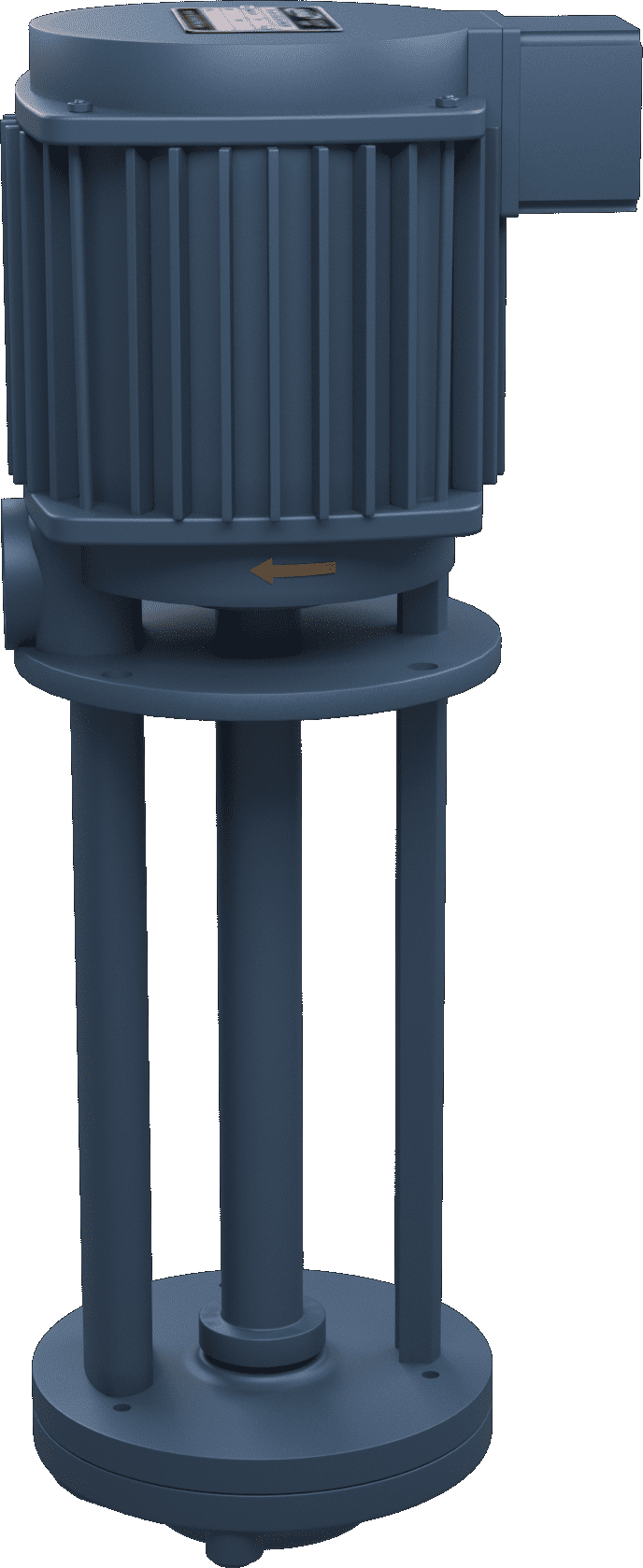

Coolant Pumps (SCP Series)

Technical Specifications
Types : Monoblock Pumps
Motor HP (kW) : 0.16(0.12) to 1.00(0.75)
Pipe Size(mm) : 15 to 32
Speed(rpm) : 2800
Immersion Depth(mm) : 120 to 440
Stages : 1 to 3
Head(mtrs) : Up to 20
Discharge(lpm) : Up to 250
Applications
  • High Pressure Cooling
  • Temperature Control
  • Refrigeration
  • Machining
View All Products
Inquiry via Email
Inquiry via

MATERIAL OF CONSTRUCTION

REGULAR SUPPLY

Motor body : C. I. Gr. FG 200
Pump body (Stem) : C. I. Gr. FG 200
End Cove : C. I. Gr. FG 200
Impeller : Nylon / Polycarbonate
Impeller Cover : Nylon / C. I. Gr. FG 200
Shaft : SS-410
Stamping : CRNGO, M-45 Grade
Bearings : SKF / Equivalent

FEATURES

  • All coolant pumps are manufactured as per IS-2161.
  • All coolant pumps are rated for continuous duty (S1) at an ambient temperature of 40° C.
  • All components of the pump are manufactured and inspected on latest precision machineries and calibrated instruments to give years of maintenance free operation.
  • All pumps are tested as per relevant Indian standard in latest and well equipped testing lab.
  • Dust and Splash-proof terminal box.
  • Triple Protection to prevent coolant ingress into the winding.
  • Position of conduit entry can be adjusted through every 90° by rotating the terminal box.
  • Relative Position of terminal box to coolant out-let can be adjusted through every 90° by rotating the body.
  • Sturdier shaft to prevent bending at pump end.
  • Large passages prevent clogging of coolant.
  • Dynamically balanced rotor ensures silent and vibration free running.
  • Class 'F' Insulation.
  • High discharge with low power consumption.
  • No priming is required due to the pump portion is immersed in the liquid.
  • These pumps are suitable for all types of coolant having viscosity up to 150 centistokes at 60°C temperature. Coolant pump is designed for continuous operation on 415 volts, 50 Hz, 3 Phase supply and suitable for direct-on-line starting.
  • Pump for 240 volts single phase supply is also available.
  • On request we can offer ON-OFF rotary switch in place of terminal box.

APPLICATIONS

Coolant Pump is a combined unit of squirrel cage stator-rotor and uni-built immersion type centrifugal pump. These are used for the supply of coolant on the working surface of machine tools. Coolant pumps are fitted on the chamber containing the coolant and the pump portion is immersed in the liquid. Hence no priming is required.



MACHINING



  • Turning, Milling, Boring, Drilling, Cutting, Circulating, Grinding, Flooding, Chip Conveyer.

HIGH PRESSURE COOLING

  • Filtration, Washing, Through Tool.

REFRIGERATION / TEMPERATURE CONTROL

  • Welding, Printing, Packing, Mold Temperature.

OTHER

  • Oil Transfer, Heat Treatment, Fountains, Stone Industries.

MEDIA

  • Water, Coolant, Chemicals, Oil, Ink, Varnish, Washing Solution.
