SS Self Priming Pumps (SSP Series)
Technical Specifications

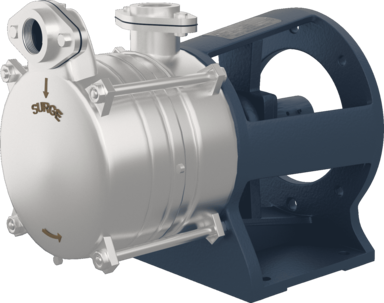

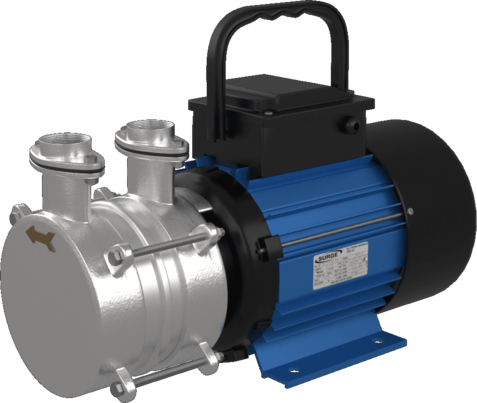

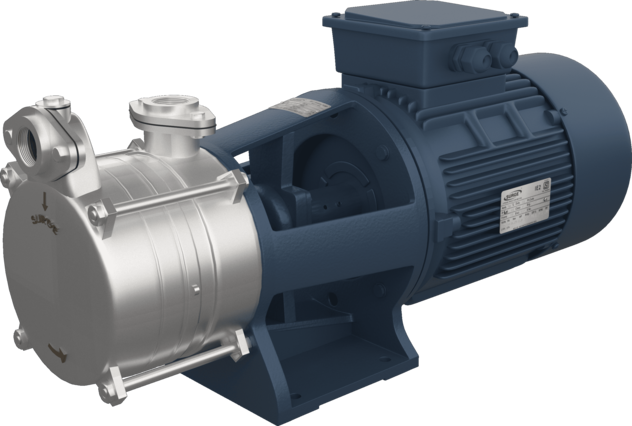

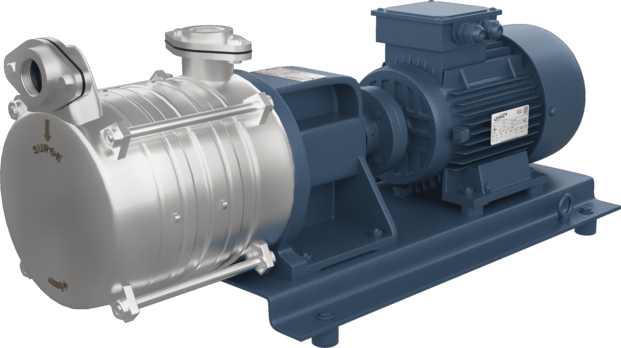

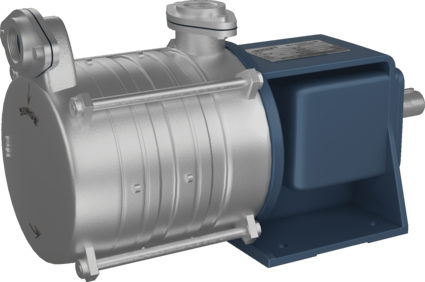

| Types | : | Bare Shaft Pumps (Seal Type) Motor Coupled Pump Sets (Seal Type) Z Type Bare Shaft Pumps (Seal Type) Z Type With Motor Pump Sets (Seal Type) Monoblock Pump Sets (Seal Type) |
|---|---|---|
| Motor Hp(kW) | : | 0.50(0.37) to 3.00(2.20) |
| Pipe Size(mm) | : | 25 X 25 to 32 X 32 |
| Speed(rpm) | : | 1440 & 2800 |
| Head(mtrs) | : | Up to 90 |
| Discharge(lpm) | : | Up to 70 |
| Stages | : | 1 to 3 |
Applications
- Dairy
- Syrup
- Beverage
- Petrol
- Chemicals
- Diesel
- Petrochemicals
- Fertilizer
- Pharmaceutical
- DM Water
- Food Processing
- Oil Refineries
- Corrosive Liquids
- Mineral Water
- Organic Solvents
- Electroplating Solutions
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Motor body | : | Aluminum |
| Pump body | : | SS-304 (CF 8) |
| Impeller | : | SS-304 (CF 8) / SS-316 (CF 8M) |
| Casing | : | SS-304 (CF 8) / SS-316 (CF 8M) |
| Pipe flange | : | SS-304 (CF 8) / SS-316 (CF 8M) |
| Shaft | : | EN-8 / SS-316 (CF 8M) |
| Mechanical seal | : | Carbon ceramic |
| Stamping | : | CRNGO, M-45 Grade |
| Bearings | : | SKF / Equivalent |
| Packing | : | Teflone |
FEATURES
- SSP Series pumps are available in mono block and bare type. All motors are TEFC type.
- Pumps are available in SS-316 (CF 8M) and SS-304 (CF 8).
- Very quick priming & no need of foot valves.
- Very high suction capacity up to 8 meters without much noise.
- Centripetal / regenerative impeller for better suction.
- All wet parts of the pump are made by lost wax process (Investment casting), hence excellent surface finish, smooth flow path / hydraulic passage and no casing defects like blow holes, cracks etc.
- Precision castings also reduce flow resistance to a minimum. This improves the hydraulic efficiency to a level unmatched in pumps of this size.
- Sturdy construction, easy to install, dismantle and assemble.
- Highly lapped finished mechanical sealing system ensures leak proof working.
- The sanitary fitting and construction from high grade stainless steel ensures smooth and even transfer of liquids.
- Specific design in this series of pumps can be developed to meet specific need.
- Available in bare shaft pump, mono block pump, motor coupled pump and close coupling z type pump design.
APPLICATIONS
- Designed and manufactured to transfer a variety of liquids in pharmaceutical, food processing, beverage, dairy and other allied industries.
- Used for pumping electroplating solutions, petrochemicals, alkali solutions, corrosive liquid, fertilizers, oil refineries, organic solvents and mineral water.
- All clear liquids without solid suspension like diesel, petrol, syrup, dm water, chemicals, evacuation of condensate water etc.
