Mud SS Self Priming Pumps (SCA Series)
Technical Specifications

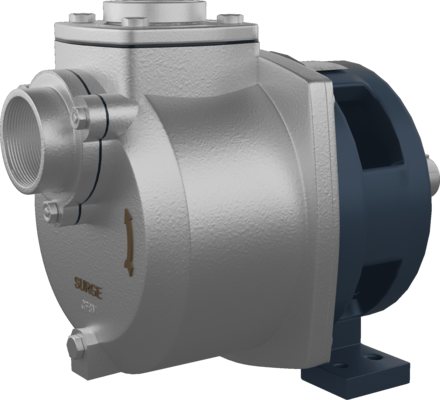

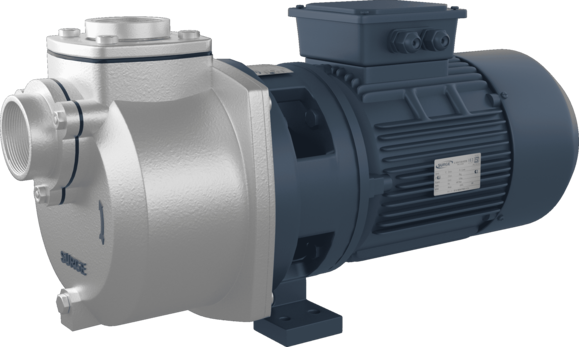

| Types | : | Bare Shaft Pumps (Seal Type) Motor Coupled Pump Sets (Seal Type) Z Type Bare Shaft Pumps (Seal Type) Z Type With Motor Pump Sets (Seal Type) |
|---|---|---|
| Motor HP (kW) | : | 1.50 (1.10) to 3.00 (2.20) |
| Pipe Size(mm) | : | 40 X 40 to 50 X 50 |
| Speed(rpm) | : | 2800 |
| Head(mtrs) | : | Up to 24 |
| Discharge(lps) | : | Up to 7 |
Applications
- Dairy
- Fertilizer
- Marine
- Beverage
- Pharmaceutical
- Petrochemicals
- Food Processing
- Corrosive Liquids
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Pump housing | : | SS-316 (CF 8M) |
| Impeller | : | SS-316 (CF 8M) |
| Diffuser | : | SS-316 (CF 8M) |
| Shaft | : | SS-316 (CF 8M) |
| Stuffing housing | : | SS-316 (CF 8M) |
| Bearings | : | SKF / Equivalent |
All other wet parts of the pumps are in SS-316 (CF 8M).
FEATURES
- Better efficiency because of good hydraulic design.
- Excellent quick automatic priming action without foot valve up to 8 meters.
- Long product life due to the parts subject to wear can be easily replaced several times to restore the original performance of the pump.
- Easy maintenance and spares availability.
- Only the suction pipe needs to be immersed in the liquid. The pump can be located above and in a dry place, in the most suitable location for service and control. Hence the pump is easy to install.
- Dynamically balanced rotating parts ensure less vibration.
- All pumps are available with mechanical seal.
- Disassembly without pipe removal for maintenance.
- Available in bare shaft pump, motor coupled pump and close coupling z type pump design.
APPLICATIONS
INDUSTRY
- Transfer, circulation, low pressure feeding of all kind of liquids in food processing, pharmaceutical, beverage, dairy and other allied industries.
- Used for pumping acid and alkali solution, corrosive liquids, fertilizers, petrochemicals, oil refineries, organic solvents and mineral water.
MARINE
- Ballast, bilge, fire fighting, engine cooling, general service etc.
- Handling liquids from docs, ports and vessels etc.
DOMESTIC
- Draining of garages, channels, swimming pool and pond.
- Irrigating water supply, grey and dirty waters pumping.
