Self Priming Multi Stage Pumps (SSC Series)
Technical Specifications

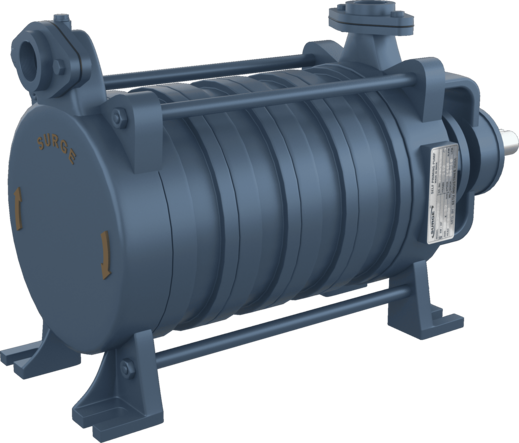

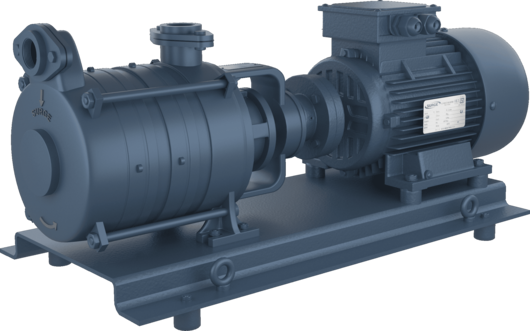

| Types | : | Bare Shaft Pumps (Seal Type) Motor Coupled Pump Sets (Seal Type) |
|---|---|---|
| Motor HP(kW) | : | 1.00(0.75) to 20.00(15.00) |
| Pipe Size(mm) | : | 25 X 25 to 65 X 65 |
| Speed(rpm) | : | 1440 |
| Head(mtrs) | : | Up to 140 |
| Discharge(lpm) | : | Up to 508 |
| Stages | : | 1 to 4 |
Applications
- Irrigation
- Mining
- Boiler Feed Pumps
- Sprinkler
- Marine
- Condensate Pumps
- Industry
- Fuel Oil
- Boosting Pressure
- Ship Building
- Fire Fighting
- Wash Down
- Process Engineering
- Domestic Water Supply
- Hot & Cold Water Circulation
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Delivery casing | : | C. I. Gr. FG 200 |
| Suction casing | : | C. I. Gr. FG 200 |
| Impeller | : | Bronze / SS-316 |
| Impeller casing | : | C. I. Gr. FG 200 |
| Pipe flange | : | C. I. Gr. FG 200 |
| Shaft | : | SS-410 |
| Mechanical seal | : | Carbon ceramic |
| Bearings | : | SKF / Equivalent |
| Bush | : | Gun metal |
FEATURES
- Horizontal lateral channel, self priming design for continuous operation handling clear liquid free from any suspended particle.
- Very quick priming and no need of foot valves.
- Self centering impellers guarantee a maintenance free operation.
- With open star impellers guarantees a high self priming ability and a delivery of gaseous liquids.
- Liquid lubricated bearing bushings guarantee high operation reliability.
- Oval light construction flanges guarantee security at good value.
- The particularly rigid stainless steel shaft ensures trouble free operation in all load phases.
- On the drive side, the shaft turns in a greased, single channel grooved ball bearing. On the impeller side, the shaft turns in a stable gun metal bush which is lubricated by the pumped liquid. In addition, all intermediate stages are mounted in gun metal bushes.
- Both the suction and discharge casings and the suction and discharge stage casings are divided transversely. The casing and individual casing sections are sealed with respect to one another by gaskets.
- Sturdy construction, easy to install, dismantle and assemble.
- Highly lapped finished mechanical sealing system ensures leak proof working.
- Available in bare shaft pump and motor coupled pump design.
APPLICATIONS
- Used for boosting pressure.
- Used in various industries like apparatus engineering, chemical and petrochemical, process engineering and ship building.
- Used to pump media like distillate, distilled water, fuel oil, boiler feed water, hydrocarbons, fuels, alkalis, solvents, acids, lubricants, drinking water, refrigerants etc.
- Irrigation, Sprinkler installations water works, fire fighting, mining.
- Fuel pumping Handling volatile liquid, wash down applications.
- Hydraulic press, circuits Transfer & circulation hot & cold water.
- Boiler feed pumps, condensate pumps.
- Transfer of liquid containing air or gas.
- Various marine applications.
- Domestic water supply.
