Mud Self Priming Pumps (SP-SS Series)
Technical Specifications

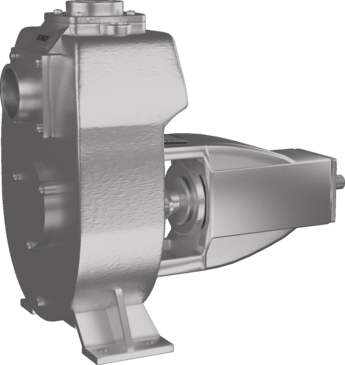

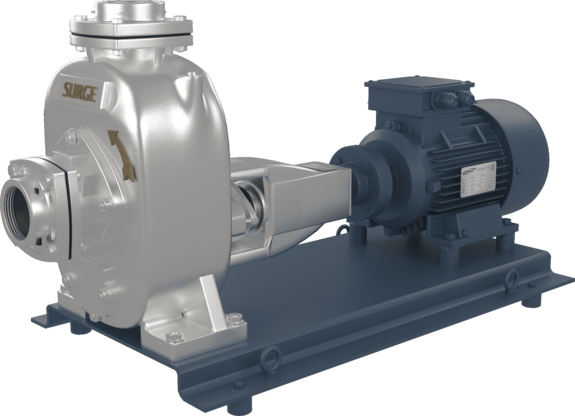

| Types | : | Bare Shaft Pumps (Gland & Seal Type) Motor Coupled Pump Sets (Gland & Seal Type) |
|---|---|---|
| Motor HP(kW) | : | 2.00(1.50) to 10.00(7.50) |
| Pipe Size(mm) | : | 40 X 40 to 80 X 80 |
| Speed(rpm) | : | 1440 & 2800 |
| Head(mtrs) | : | Up to 36 |
| Discharge(lps) | : | Up to 18 |
| Solid Handling Size(mm) | : | Up to 14.5 |
Applications
- Marine
- Public Utilities
- Waste Treatment
- Industry
- Food Processing
- Mobile Machinery
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Pump / Motor Body | : | SS-316 (CF 8M) |
| Impeller | : | SS-316 (CF 8M) |
| Wear Plate | : | SS-316 (CF 8M) |
| Impeller Ring | : | SS-316 (CF 8M) |
| Shaft | : | SS-316 (CF 8M) |
| Shaft Sleeve | : | SS-316 (CF 8M) |
| Gland Packing | : | Teflon |
| Bearings | : | SKF / Equivalent |
| All other wet parts of the pump are in SS-316. | ||
OPTIONAL SUPPLY
| Impeller | : | SS-304 (CF 8) / Bronze |
| Impeller Ring | : | SS-304 (CF 8) / Bronze |
| Wear Plate | : | SS-304 (CF 8) / Bronze |
| Shaft | : | SS-304 (CF 8) |
| Shaft Sleeve | : | SS-304 (CF 8) |
FEATURES
- Efficient design and performance as available in international market.
- Automatic air releasing while priming is design specialty with added feature of quick self priming.
- No need of foot valve.
- Easy maintenance and spares availability.
- Design of impeller is semi open / open vane type for no clogging and enables to handle solid particles up to 15.5 mm.
- Back pull out design for repair possible without disturbing pipe lines.
- All rotating parts are dynamically balanced for smooth running and low vibration.
- Long product life due to replaceable wearing parts.
- All pumps are available with gland packing or mechanical seal.
- Available in bare shaft pump and motor coupled pump design.
APPLICATIONS
INDUSTRY
- Transfer of clean or dirty neutral, acid or alkali liquids containing sand, mud or solids in suspension, clean or dirty low viscosity petroleum product or solvents, milk of lime, caustic soda.
- Used for pumping corrosive liquids, fertilizers, petrochemicals, oil refineries, organic solvents and mineral water.
- Tiles, marble & ceramic factories, effluent plants.
PUBLIC UTILITIES
- For pumping muddy water, sewage, polluted liquids, solid and in swimming pool.
- Dewatering basements, trenches and construction sites.
- Flood drainage, sewage pumping, fire fighting, and recovery of dangerous liquids.
MOBILE MACHINERY
- Cooling water for marine engines and shovels.
- Any application where priming is to be avoided.
WASTE TREATMENT
- Pumping polluted, hot or corrosive waste water containing sand, mud or solids in suspension, dosing neutralizing liquids, pumping out settled sludge.
MARINE
- Loading and unloading, bilge pumping, washing, fire fighting, stripping, sanitary duty and circulation.
- Handling liquids from docs, ports and vessels etc.
