Rotary Gear Pumps (SEG Series)
Technical Specifications

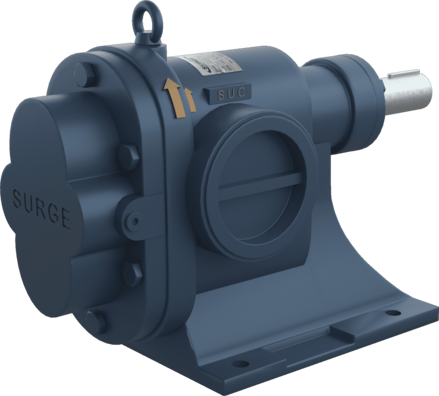

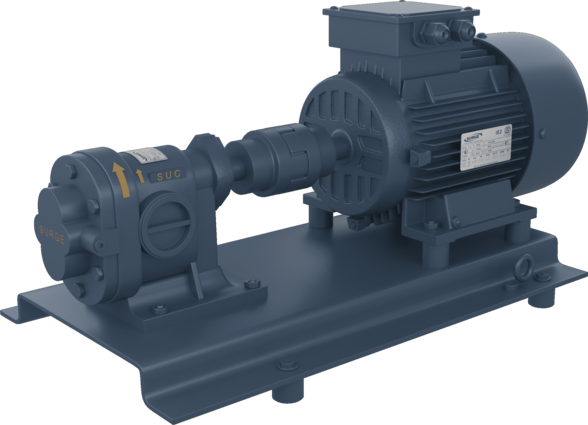

| Types | : | Bare Shaft Pumps Motor Coupled Pump Sets |
|---|---|---|
| Motor HP(kW) | : | 0.25(0.18) to 20.00(15.00) |
| Pipe Size(mm) | : | 10 X 10 to 80 X 80 |
| Speed(rpm) | : | 1440 |
| Pressure(Kg/cm2) | : | Up to 10 |
| Discharge(lpm) | : | Up to 500 |
"SEG" Series rotary gear pumps are useful for handling viscous and semi viscous liquids. Rotary gear pumps are widely used in
Applications
- Steel Mills
- Refineries
- Textile Industries
- Paper Mills
- Power Plants
- Stone Crusher Plants
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Pump body (Stem) | : | C. I. Gr. FG 200 |
| Back cover with R.V. | : | C. I. Gr. FG 200 |
| Gland cover | : | C. I. Gr. FG 200 |
| Gear shaft assembly | : | Gaer – SAE 8620, Shaft – EN 8 |
| Bush | : | Sintered bronze |
| Oil seal | : | Nitrile rubber |
| Coupling key | : | SS-410 |
| Packing | : | Prespane Paper |
FEATURES
- All positive displacement rotary gear pumps are self priming pumps with suction lift of 5 meters at mean viscosity and speed 1440 rpm.
- The SEG series gear pumps have modified profile of teeth to give accurate discharge within the range.
- The helical gear design delivers constant volume without any pulsation. It also reduces internal slippage and gives high volumetric efficiency
- Compact in size and highly economical.
- All these pumps are self lubricated pumps recommended for use where the liquid to be transferred has lubrication properties.
- Hence the bushes are lubricated by the pumping fluid and do not need any external lubrication.
- Easy maintenance due to availability and interchangeability of spares.
- All gear pumps are designed and assembled with close tolerances to reduce the mechanical losses, thus it consumes less power and operates at higher efficiency
- Available in bare shaft pump and motor coupled pump design.
APPLICATIONS
“SEG” Series rotary gear pumps are useful for handling following viscous and semi viscous liquids.
- Clean lube oil, castor oil, coconut oil, ground nut oil, cotton seeds oil and hydraulic oil.
- All kind of vegetable oils.
- Paints & varnish.
- All kind of fish and animal oils.
- Soap solutions.
- Sugar molasses and syrups.
- Printing inks & dyes.
- Glycerin, glycol and glue.
- Viscous chemical.
- Coal tar, bitumen, asphalts.
- Fuel oil, diesel oil & furnace oil.
- Rotary gear pumps are widely used in paper mills, refineries, steel mills, textile industries and power plants.
