SS Centrifugal Pumps (SCF Series)
Technical Specifications

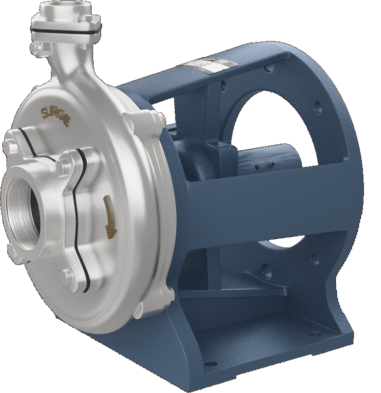

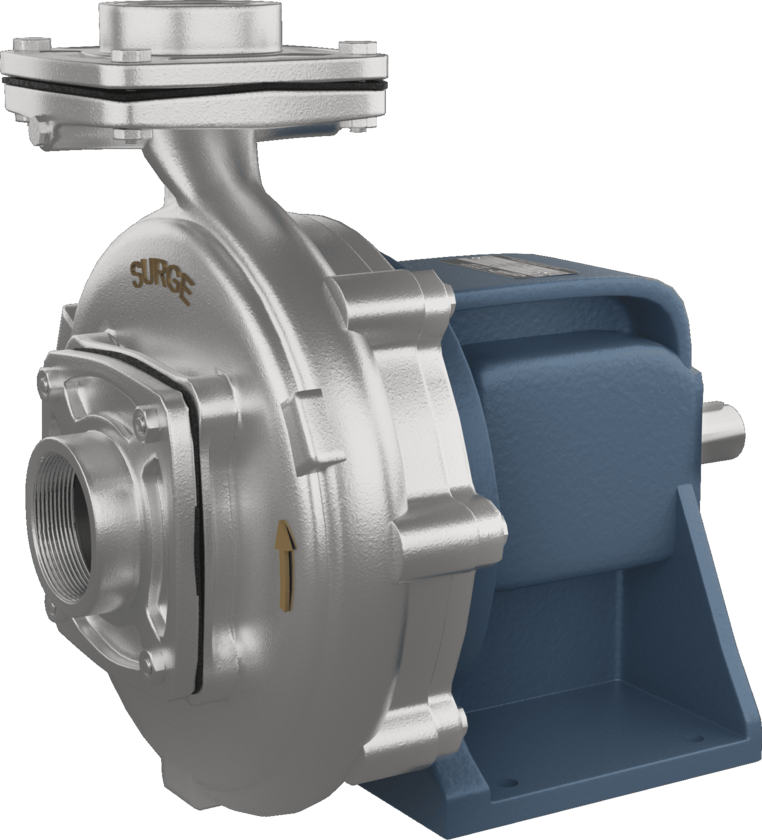

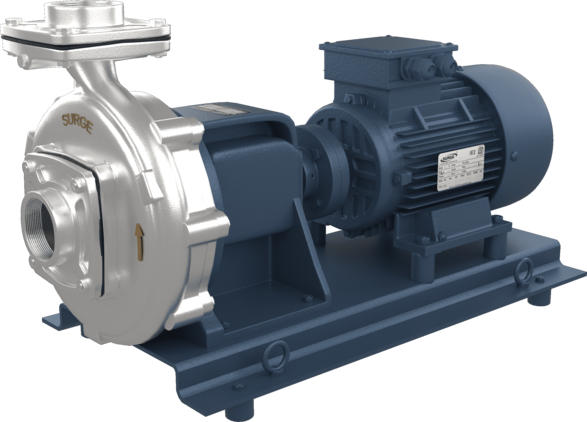

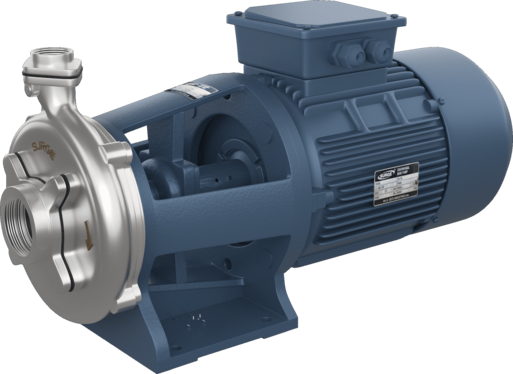

| Types | : | Bare Shaft Pumps (Gland & Seal Type) Motor Coupled Pump Sets (Gland & Seal Type) Z Type Bare Shaft Pumps (Gland & Seal Type) Z Type With Motor Pump Sets (Gland & Seal Type) |
|---|---|---|
| Motor HP(kW) | : | 1.50(1.10) to 3.00(2.20) |
| Pipe Size(mm) | : | 25 X 25 to 50 X 50 |
| Speed(rpm) | : | 2800 |
| Head(mtrs) | : | Up to 25 |
| Discharge(lpm) | : | Up to 520 |
Applications
- Dairy
- Distillery
- Dyeing
- DM Water
- Beverage
- Chemicals
- Fertilizer Units
- Soft Drinks
- Bottling Plants
- Oil Refineries
- Paper Industry
- Mineral Water
- Sugar Industry
- Petrochemicals
- Pharmaceutical
- Organic Solvents
- Food Processing
- Corrosive Liquids
- Sea Water Application
- Water Treatment Plants
- Electroplating Solutions
- Water Circulation System
- Boiler Circulation System
- Acid and Alkali Solutions
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Pump body | : | SS-316 (CF 8M) |
| Impeller | : | SS-316 (CF 8M) |
| Pipe flange | : | SS-316 (CF 8M) |
| Shaft | : | SS-316 (CF 8M) |
| Gland bush | : | SS-316 (CF 8M) |
| Gland packing | : | Teflon |
| Mechanical seal | : | Carbon ceramic |
| Stamping | : | CRNGO, M-45 Grade |
| Bearings | : | SKF / Equivalent |
| O Ring | : | Nitrile rubber |
FEATURES
- All wet parts of the pump are made by lost wax process (Investment casting), hence excellent surface finish, smooth flow path / hydraulic passage and no casing defects like blow holes, cracks etc.
- High efficiency and high discharge rate at less power consumption.
- Casing and Impeller are made of SS 316.
- Anticorrosive stainless steel shaft.
- Impeller is dynamically balanced for low noise and longer bearing life.
- Long life due to replaceable wearing parts.
- Easy spares availability.
- Suction lift up to 8 meters.
- Extremely simple in construction, easy maintenance and easy gland packing replacement.
- Available in various pipe sizes.
- Sealing arrangement available with mechanical seal and gland packing.
- SCFZ Series suitable for B5 type IEC motors.
- Specific design in this series of pumps can be developed to meet specific need.
- Available in bare shaft pump, motor coupled pump and close coupling z type pump design.
APPLICATIONS
- Water circulation system, Sea water application and Boiler circulation system.
- Designed and manufactured to transfer a variety of liquids in pharmaceutical, food processing, beverage, dairy and other allied industries.
- Used in dyeing, sugar Industry, paper & pulp industry, fertilizer units, bottling plants, water treatment plants, soft drinks & distillery etc.
- Used for pumping electroplating solutions, petrochemicals, alkali solutions, corrosive liquid, oil refineries, organic solvents and mineral water.
- All clear liquids without solid suspension like diesel, petrol, syrup, dm water, chemicals, evacuation of condensate water etc.
