Vertical Inline Pumps (SV Series)
Technical Specifications

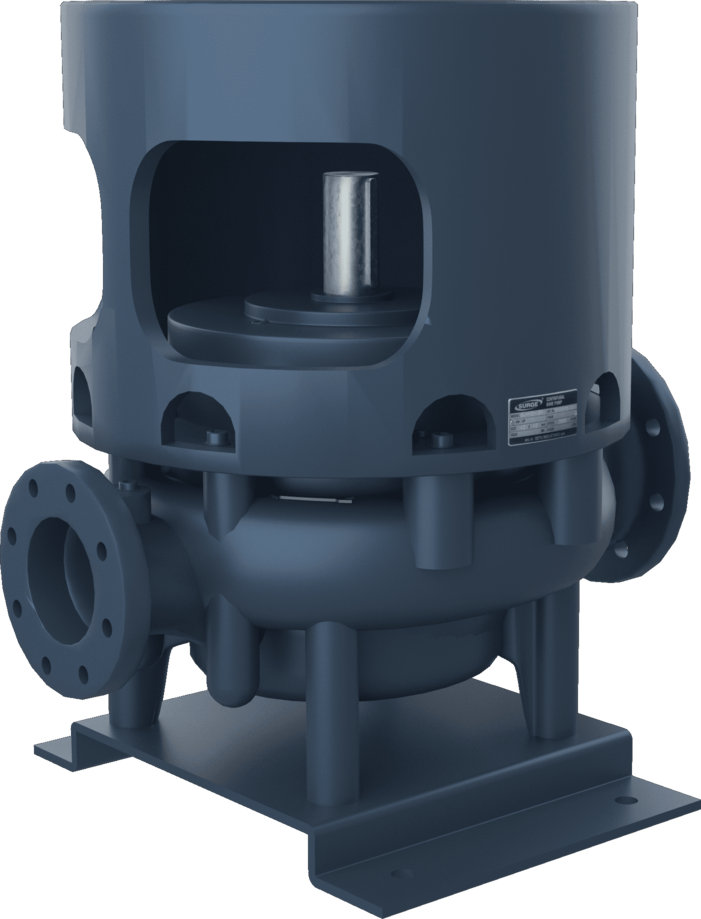

| Types | : | Bare Shaft Pumps (Seal Type) With Motor Pump Sets (Seal Type) |
|---|---|---|
| Motor HP(kW) | : | 3.00(2.20) to 12.50(9.30) |
| Pipe Size(mm) | : | 40 X 40 to 100 X 100 |
| Speed(rpm) | : | 1440 & 2800 |
| Head(mtrs) | : | Up to 48 |
| Discharge(lps) | : | Up to 32 |
Applications
- Fire Pumps
- Irrigation
- Cooling Systems
- Water Supply
- Ship Building
- Industrial
- Cooling Towers
- Liquid Transfer
- Water Circulation
- Heating & Cooling
- High Rise Building
- Boosting Pump System
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Pump body | : | C. I. Gr. FG 200 |
| Impeller | : | C. I. Gr. FG 200 / SS-316 (CF 8M) / Bronze |
| Bearing housing | : | C. I. Gr. FG 200 |
| Stuffing housing | : | C. I. Gr. FG 200 |
| Shaft | : | SS-410 |
| Mechanical seal | : | Carbon ceramic |
| Bearings | : | SKF / Equivalent |
FEATURES
- Vertical in line single stage centrifugal pump.
- Compact and light weight design.
- Easy removal and maintenance, back pull out design allows all rotating elements to be removed without disconnecting suction and discharge pipe.
- In line suction and discharge.
- Non overload design to ensure stable performance for all application.
- The pump is suitable for the pumping of liquids with temperatures up to 80° C with special shaft seal up to 120° C maximum working pressure and numbers of revolutions are indicated under operating data.
- Available in bare shaft pump and close coupling with motor type pump design.
APPLICATIONS
- Water Supply – Boosting pump system, High rise building.
- Water Circulation – Circulating of water in Heating & Cooling.
- Industrial Use – Liquid transfer.
- Cooling Towers.
- Ship Building.
- Agriculture.
- The pump is particularly suitable for the pumping of water in connection with cooling systems, cooling of diesel engines, as bilge pumps, ballast pumps, fire pumps, brine pumps, pumps for irrigation, fish farms, water works, salvage corps, army and navy, etc.
