Mud Self Priming Pumps (SP Series)
Technical Specifications

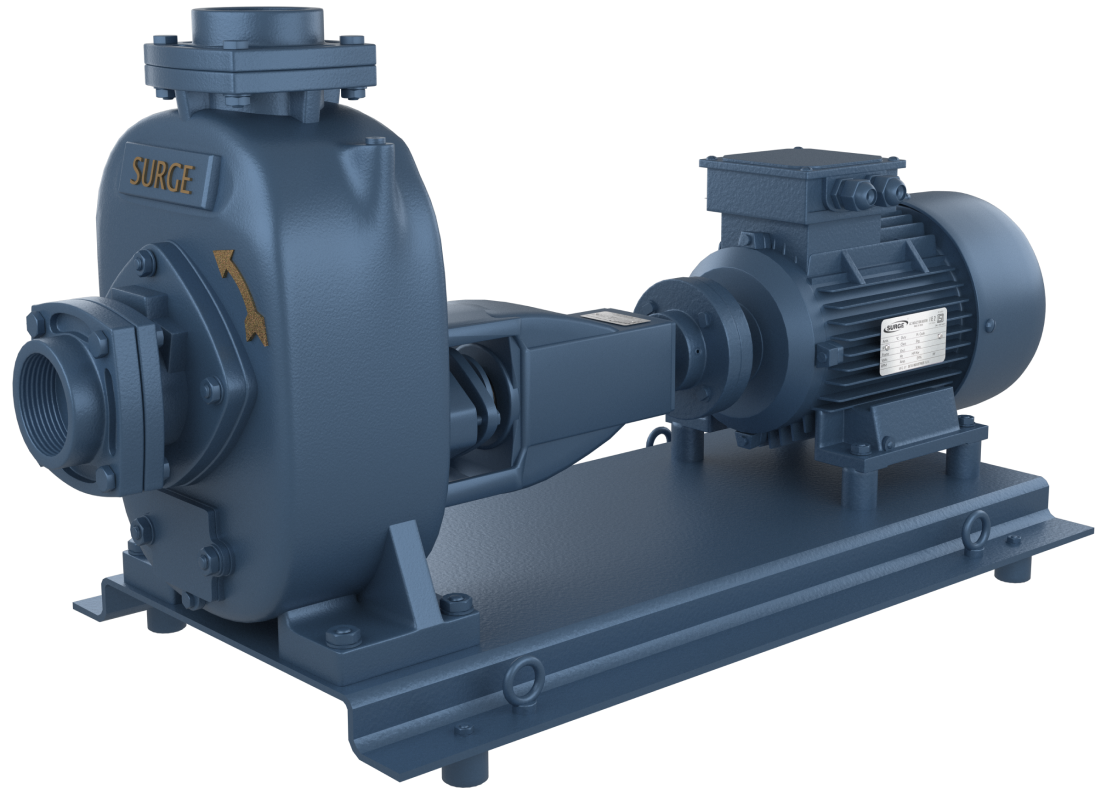

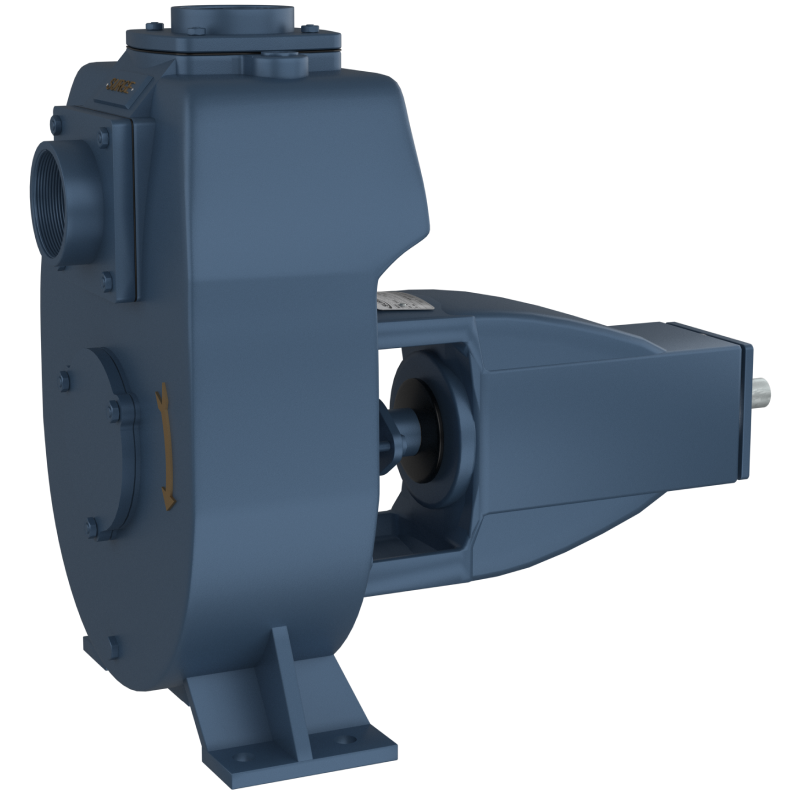

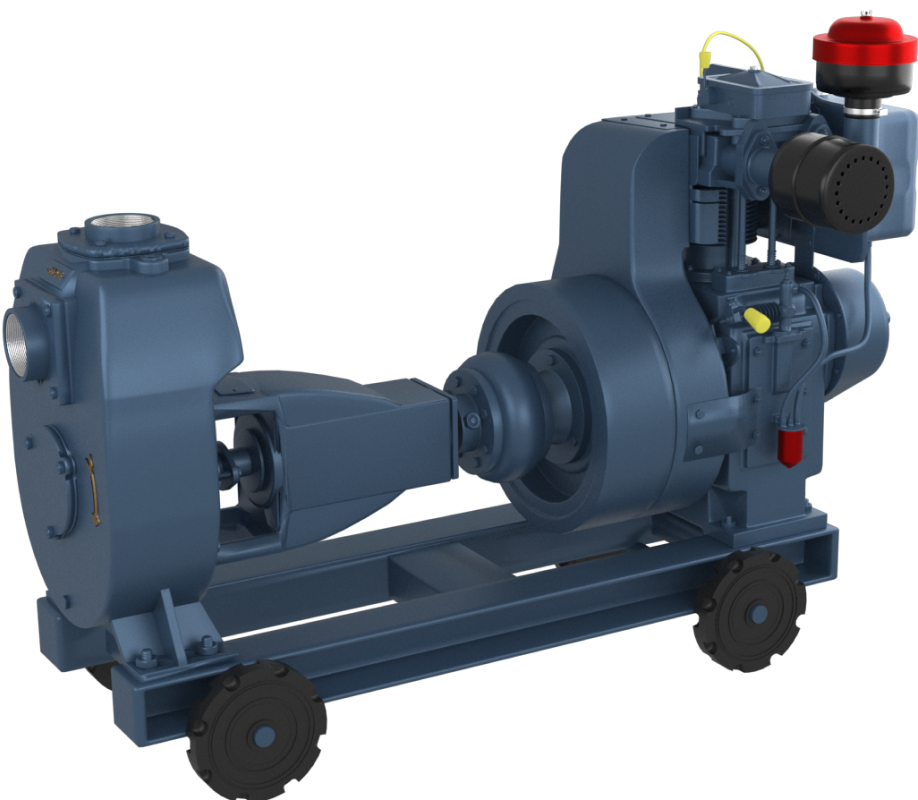

| Types | : | Bare Shaft Pumps (Gland & Seal Type) Motor Coupled Pump Sets (Gland & Seal Type) Engine Coupled Pump Sets (Gland & Seal Type) Monoblock Pump Sets (Gland & Seal Type) |
|---|---|---|
| Motor HP(kW) | : | 1.00 (0.75) to 30.00 (22.00) |
| Engine HP | : | 8.00 to 32.00 |
| Pipe Size (mm) | : | 40 X 40 to 150 X 150 |
| Speed (rpm) | : | 1440 & 2800 |
| Head (mtrs) | : | Up to 44 |
| Discharge (lps) | : | Up to 71 |
| Solid Handling Size (mm) | : | Up to 40 |
Applications
- Industry
- Waste Treatment
- Construction Industry
- Public Utilities
- Mobile Machinery
- Agriculture & Marine
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Pump / Motor Body | : | C. I. Gr. FG 200 |
| Impeller | : | C. I. Gr. FG 200 |
| Wear Plate | : | C. I. Gr. FG 200 |
| Impeller Ring | : | C. I. Gr. FG 200 |
| Shaft | : | SS-410 |
| Shaft Sleeve | : | SS-410 |
| Stamping | : | CRNGO, M-45 Grade |
| Gland Packing | : | Graphite asbestos |
| Bearings | : | SKF / Equivalent |
OPTIONAL SUPPLY
| Impeller | : | SS-304 (CF 8) / SS-316 (CF 8M) / Bronze |
| Impeller Ring | : | SS-304 (CF 8) / SS-316 (CF 8M) / Bronze |
| Wear Plate | : | SS-304 (CF 8) / SS-316 (CF 8M) / Bronze |
| Shaft | : | SS-304 (CF 8) / SS-316 (CF 8M) |
| Shaft Sleeve | : | SS-304 (CF 8) / SS-316 (CF 8M) |
| Gland Packing | : | Teflone |
FEATURES
- Efficient design and performance as available in international market.
- Automatic air releasing while priming is design specialty with added feature of quick self priming.
- No need of foot valve.
- Easy maintenance and spares availability.
- Design of impeller is semi open/ open vane type for no clogging and enables to handle solid particles up to 40 mm.
- Back pull out design for repair possible without disturbing pipe lines.
- All rotating parts are dynamically balanced for smooth running and low vibration.
- Long product life due to replaceable wearing parts.
- Motor designed for wide voltage fluctuation for mono block pump sets,
(From 180 to 240 volts for single phase pumps)
(From 350 to 450 volts for three phase pumps) - All pumps are available with gland packing or mechanical seal.
- Available in bare shaft pump, mono block pump, motor coupled pump and diesel engine coupled pump design.
APPLICATIONS
INDUSTRY
- Transfer of clean or dirty neutral, acid or alkali liquids containing sand, mud or solids in suspension, clean or dirty low viscosity petroleum product or solvents, milk of lime, caustic soda.
- Washing, cooling, circulation, smoke scrubbing, emergency duty.
- Pumping light chemical, sewage, ash water.
- Tiles, marble & ceramic factories, effluent plants.
- Industries for clear water handling at high pressures.
PUBLIC UTILITIES
- For pumping muddy water, sewage, polluted liquids, solid and in swimming pool.
- Dewatering basements, trenches and construction sites.
- Dewatering from basements, multi storey, shopping malls, godowns etc.
- Flood drainage, sewage pumping, fire fighting, and recovery of dangerous liquids.
MOBILE MACHINERY
- Cooling water for marine engines and shovels.
- Any application where priming is to be avoided.
- Pumping polluted, hot or corrosive waste water containing sand, mud or solids in suspension, dosing neutralizing liquids, pumping out settled sludge.
CONSTRUCTION INDUSTRY
- Dewatering excavation, canals or ponds, ground water dewatering with well point system or drains, water supply from wells or canals, hosing down concrete castings.
AGRICULTURE
- Surface irrigation, liquid manure oxygenation, transfer and spraying liquid manure or fertilizers, distribution of liquid animal feed, transfer of must, washing.
MARINE
- Loading and unloading, bilge pumping, washing, fire fighting, stripping, sanitary duty and circulation.
