Rotary Gear Pumps (SEG-SS Sereis)
Technical Specifications

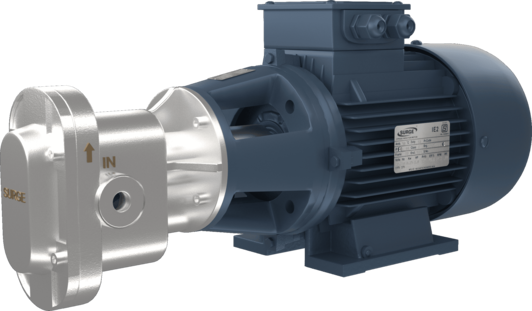

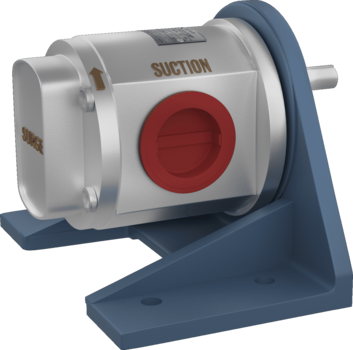

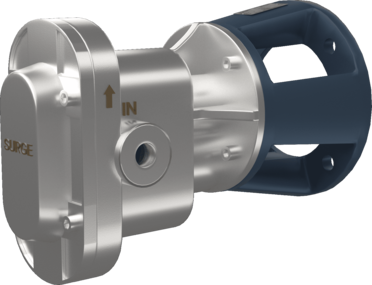

| Types | : | Bare Shaft Pumps Motor Coupled Pump Sets Z Type Bare Shaft Pumps Z Type With Motor Pump Sets |
|---|---|---|
| Motor HP(kW) | : | 0.50(0.37) to 12.50(9.30) |
| Pipe Size(mm) | : | 15 X 15 to 50 X 50 |
| Speed(rpm) | : | 1440 |
| Pressure(Kg/cm2) | : | Up to 10 |
| Discharge(lpm) | : | Up to 200 |
"SEG-SS" Series rotary gear pumps are useful for handling viscous and semi viscous liquids. Rotary gear pumps are widely used in indusries like
Applications
- Textile
- Pharmaceutical
- Paper Mills
- Refineries
- Food Processing
- Steel Mills
MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
| Pump body (Stem) | : | SS-316 (CF 8M) |
| Front & Back cover | : | SS-316 (CF 8M) |
| Gland cover | : | SS-316 (CF 8M) |
| Stuffing housing | : | SS-316 (CF 8M) |
| Gear shaft assembly | : | Gaer – SS-316 (CF 8M), Shaft – SS-316 (CF 8M) |
| Bush | : | Carbon Teflon |
| Gland packing | : | Teflon |
| Coupling key | : | SS-410 |
| Packing | : | Teflon |
| Mounting Bracket | : | C. I. Gr. FG 200 |
FEATURES
- All positive displacement rotary gear pumps are self priming pumps with suction lift of 5 meters at mean viscosity and speed 1440 rpm.
- The SEG-SS series gear pumps have modified profile of teeth to give accurate discharge within the range.
- The helical gear design delivers constant volume without any pulsation. It also reduces internal slippage and gives high volumetric efficiency.
- Compact in size and highly economical.
- All these pumps are self lubricated pumps recommended for use where the liquid to be transferred has lubrication properties.
- Hence the bushes are lubricated by the pumping fluid and do not need any external lubrication.
- Easy maintenance due to availability and interchangeability of spares.
- All gear pumps are designed and assembled with close tolerances to reduce the mechanical losses, thus it consumes less power and operates at higher efficient.
- Available in bare shaft pump, motor coupled pump and close coupling z type pump design.
APPLICATIONS
“SEG-SS” Series rotary gear pumps are useful for handling following viscous and semi viscous liquids.
- Food products like ghee, butter, fruit pulp, vegetable souse etc.
- Pharmaceutical application for handling sugar solution, glycerin, glycol etc.
- Clean lube oil, castor oil, coconut oil, ground nut oil, cotton seed oil and hydraulic oil.
- All kind of vegetable oils.
- Soap solutions.
- All kind of fish and animal oils.
- Printing inks & dyes.
- Corrosive viscous chemical.
- Paints & varnish.
- Rotary gear pumps are widely used in paper mills, refineries, steel mills, textile industries and power plants.
